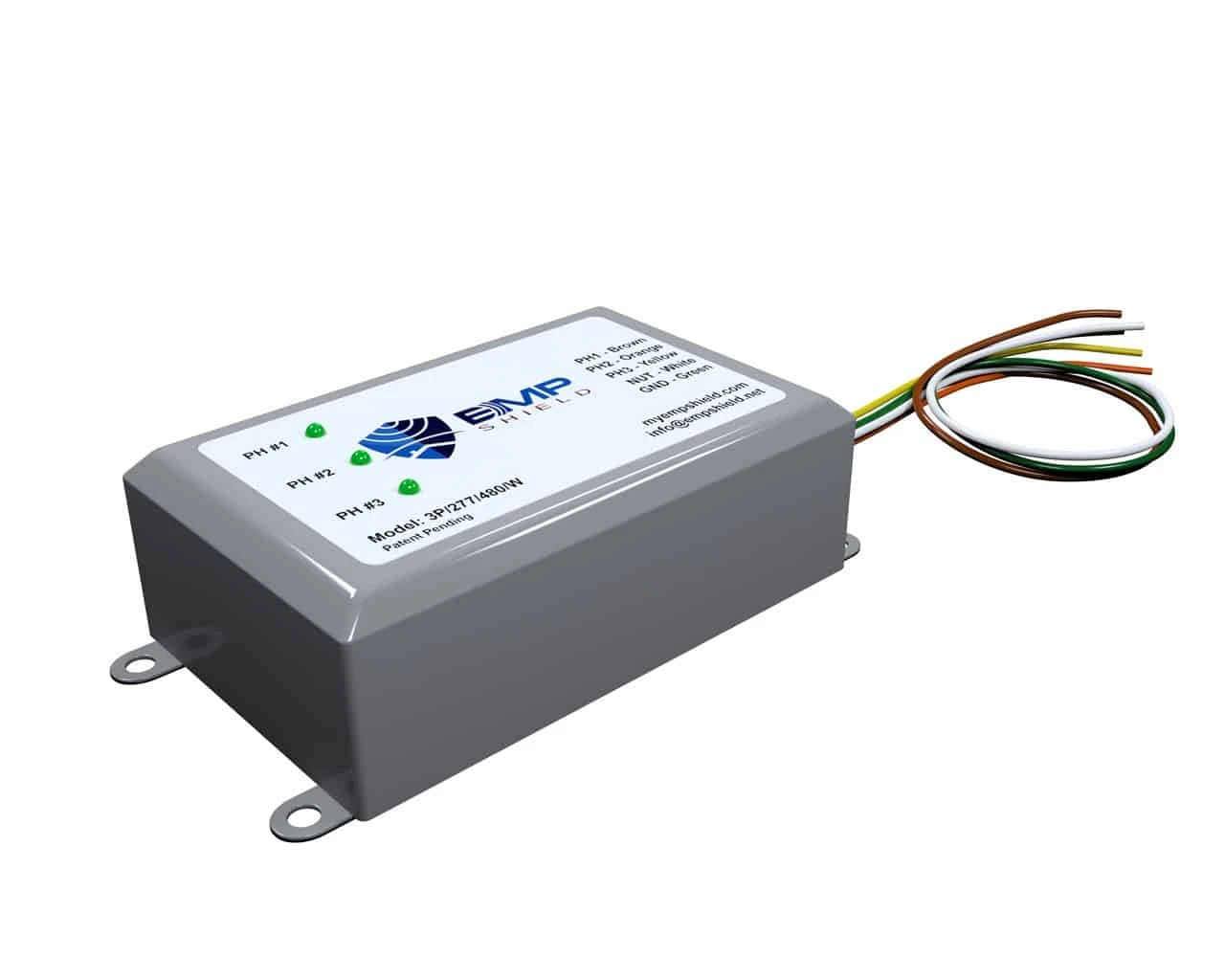

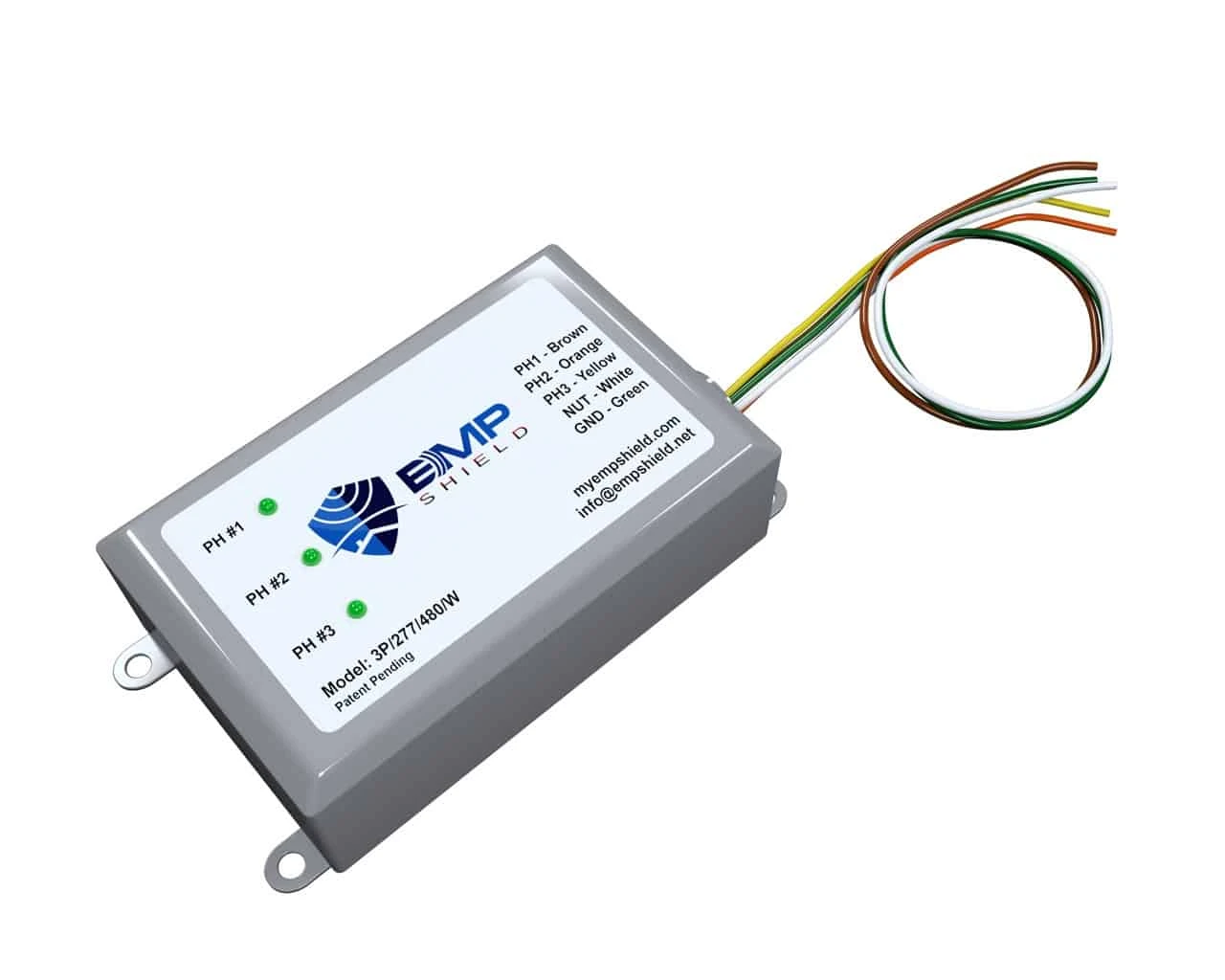

EMP Shield 3-Phase EMP & Lightning Protection With CME Defense (277V)

Protect your electrical systems from EMP, solar flare, and lightning strikes.

The EMP Shield is one of the world’s fastest whole home surge protectors operating in less than 1 billionth of a second. EMP Shield will protect all the electronics and equipment connected to your electrical system.

• Incredibly Powerful – capable of withstanding up to 228,000 Amps per phase (E1, E2, & E3)
• SightSpeed Technology – patented technology pulls excess electricity from your electrical system in 500-Trillionths of a second
• IP 66 Weather Proof – can be used in extreme hot & cold climate conditions
• Easy Install – Designed to install easily (within 10 minutes) for any application – installation guide included

EMP Shield will protect electronics and equipment relying on your home electrical system. This is accomplished by shunting (shorting) the over voltage coming in from the grid and the voltage surges that are collected within your home. Since the shunting is completed incredibly fast, the over voltage is drained away from the equipment before the voltage can rise high enough to damage any equipment.

Features

Tech Specs

EMP Shield Product Specifications	3P/277/480/W
Phase:	Three Phase
Nominal System Voltage:	277/480V AC
Maximum Surge Per Phase:	114kA (8-20 microseconds)
Short Circuit Current Rating:	10kA
Nominal Discharge Current:	114kA (8-20 microseconds)
Number of Poles:	3
Enclosure Material	Plastic
NEMA Rating:	NEMA 4
Application:	Outdoor Applications; Indoor Applications
Color:	Gray
Features:	LED Status Indication; AC Power Protection
For Maximum Wire Size:	12 AWG
For Use With:	Individual Equipment Power Box; Circuit Breaker Enclosures; and Load Centers
Frequency:	60 Hz
IP Rating Met:	IP66
Maximum Continuing Operating Voltage:	350/600 V AC
Maximum Surge Current Per Mode:	114kA (8-20 microseconds)
Modes of Protection:	L-L; L-N; L-G; N-G
Mounting Style:	Individual Equipment Power Box; Circuit Breaker Enclosures; and Load Centers
Number of Wires:	5
Overall Height:	2-1/2″
Overall Length:	5-1/4″
Overall Width:	5-1/2″
Specification Met:	UL 1449; CE; IP66; MIL-STD-188-125-1; MIL-STD-461G; MIL-STD-464C; and RS105
Voltage Protection Rating	L-G 680V; L-N 680V; L-L 1360V
Response Time:	< 1 nanoseconds
