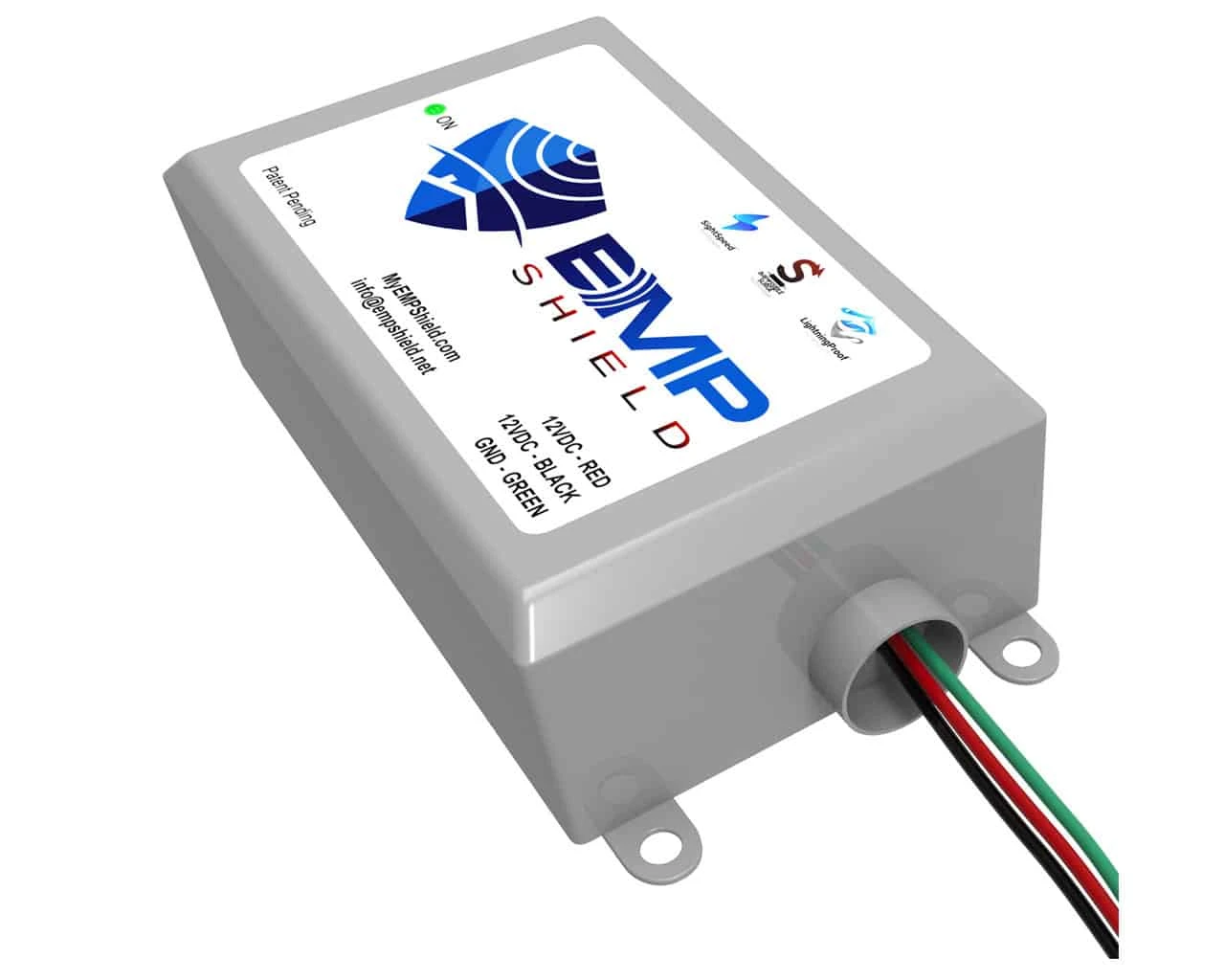

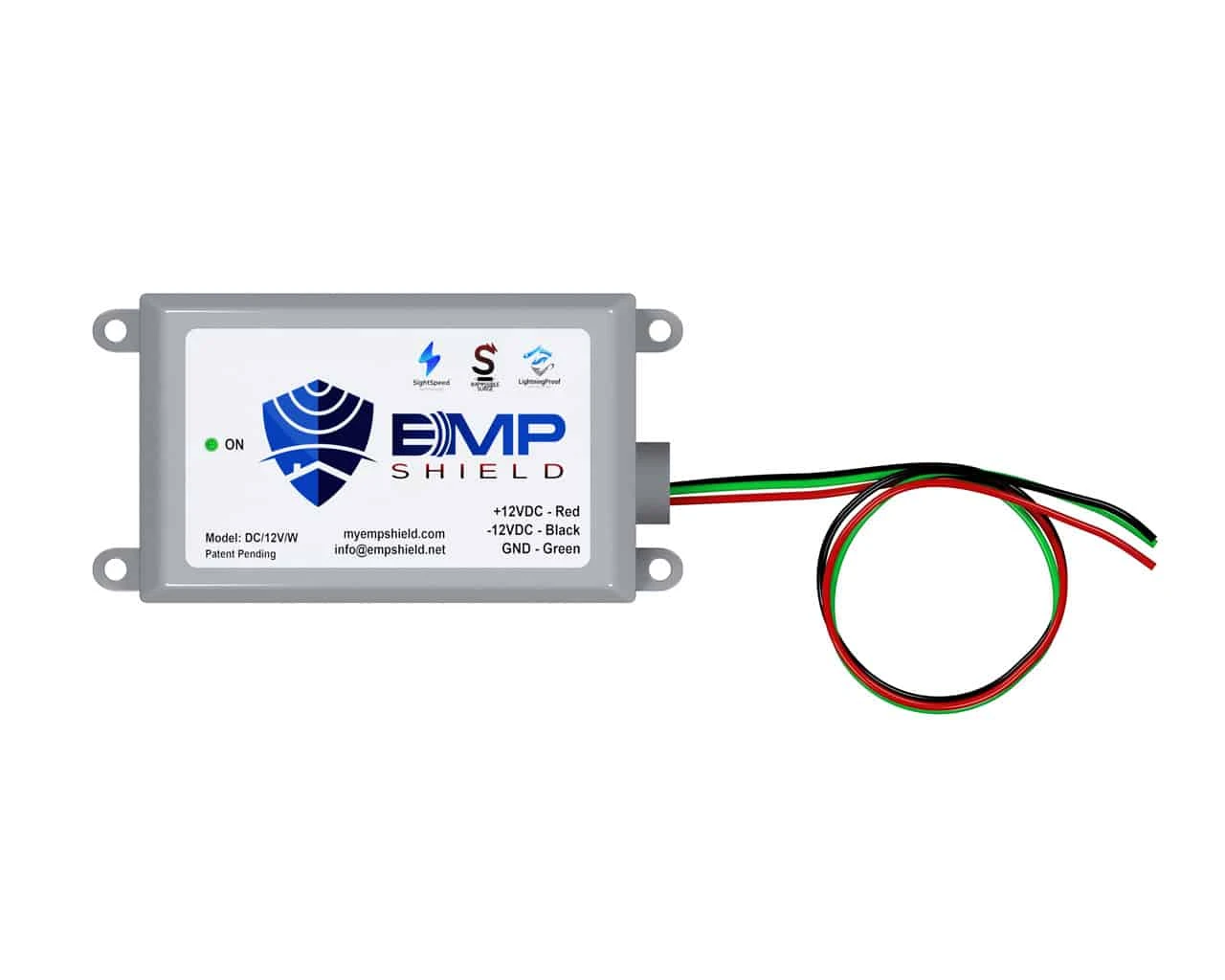

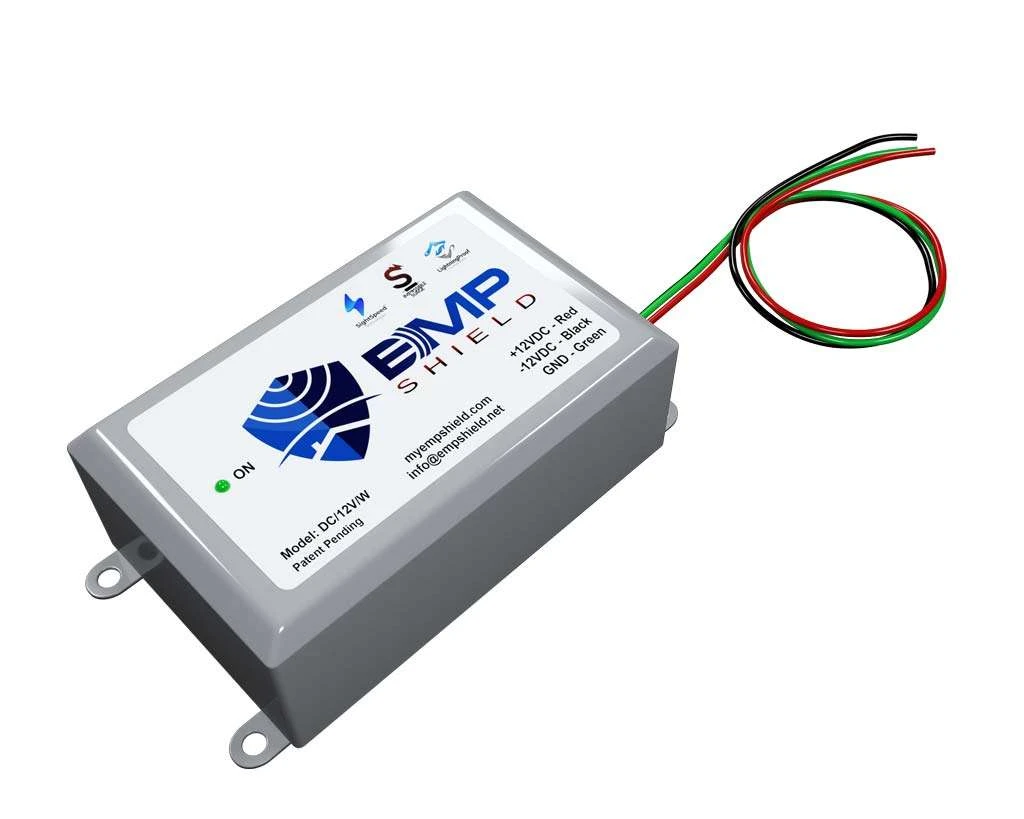

EMP Shield Vehicle EMP & Lightning Protection

EMP Shield is the World’s first EMP protection technology for a vehicle. One of the world’s fastest military-tested surge protectors proven to defend against all phases of electromagnetic pulse, solar flares, and lightning strikes. EMP Shield will ensure your vehicle operates after experiencing an electromagnetic pulse, helping you get home, save family members, or even get supplies while others cannot.

• Incredibly Powerful – capable of withstanding up to 228,000 Amps per phase (E1, E2, & E3)
• SightSpeed Technology – patented technology pulls excess electricity from your electrical system in 500-Trillionths of a second
• IP 66 Weather Proof – can be used in extreme hot & cold climate conditions
• Easy Install – Designed to install easily (within 10 minutes) for any application – installation guide included

EMP Shield will protect all the electronics and equipment connected to your electrical system. This is accomplished by shunting (shorting) the over voltage coming in from the grid and the voltage surges that are collected within your home. Since the shunting is completed incredibly fast, the over voltage is drained away from the equipment before the voltage can rise high enough to damage any equipment.

Features

Tech Specs

Phase:	Direct Current
Nominal System Voltage:	12V DC
Maximum Surge Per Circuit:	69kA (8-20 microseconds)
Short Circuit Current Rating:	10kA
Nominal Discharge Current:	69kA (8-20 microseconds)
Number of Poles:	N/A
Enclosure Material	Plastic
NEMA Rating:	NEMA 4
Application:	Outdoor Applications; Indoor Applications
Color:	Gray
Features:	LED Status Indication; DC Power Protection
For Maximum Wire Size:	12 AWG
For Use With:	Individual DC Equipment Power Box; Solar collection systems, and other DC power supplies
Frequency:	N/A
IP Rating Met:	IP66
Maximum Continuing Operating Voltage:	12V DC
Maximum Surge Current Per Mode:	69kA (8-20 microseconds)
Modes of Protection:	Pos – Neg; Pos – Gnd; Neg – Gnd
Mounting Style:	Individual DC Equipment Power Box; DC Circuit Breaker Enclosures; and DC Power Supplies
Number of Wires:	3
Overall Height:	2-1/2″
Overall Length:	6-3/16″
Overall Width:	2-3/4″
Specification Met:	UL 1449; CE; IP66; MIL-STD-188-125-1; MIL-STD-461G; MIL-STD-464C; and RS105
Voltage Protection Rating	Pos – Neg 18V; Pos – Gnd 18V; Neg – GND 18V
Response Time:	< 1 nanosecond
