Goal Zero Nomad 5 + Guide 12 Solar Panel Kit

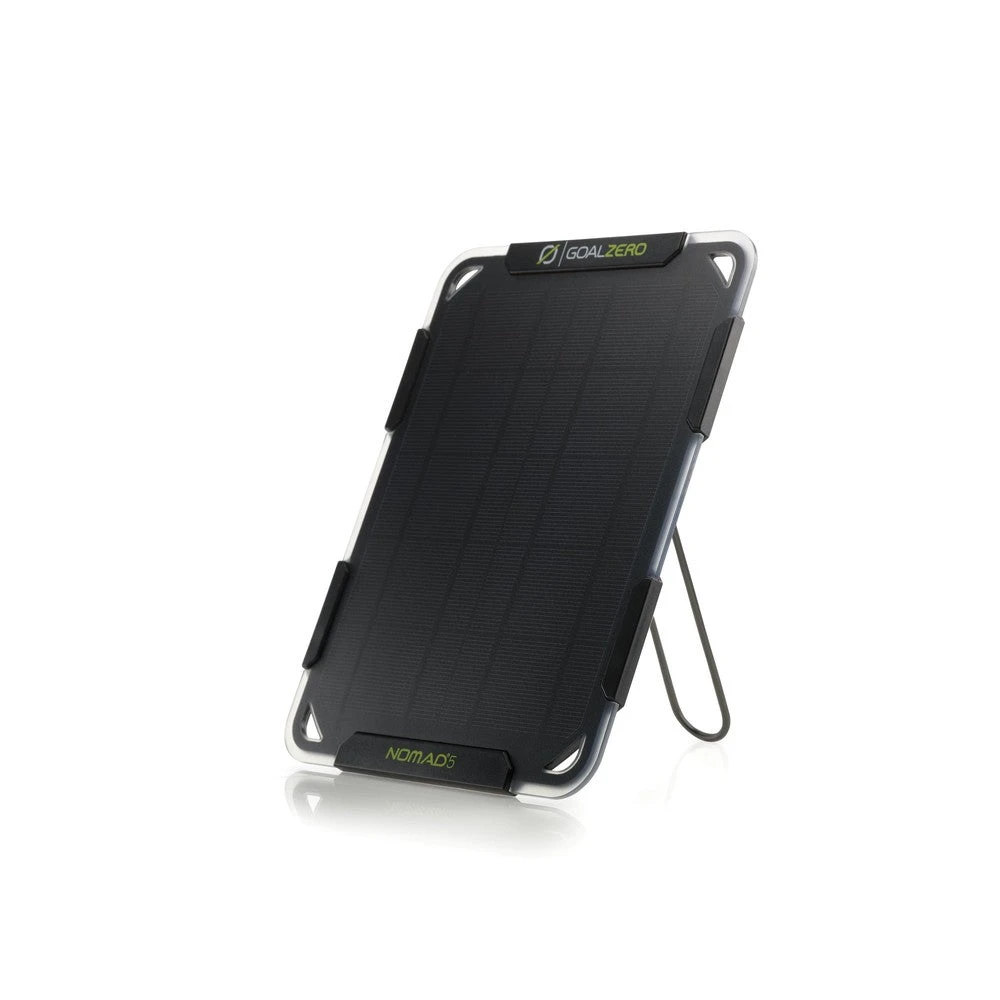

A lightweight solution for on-the-go power from the sun, the Nomad 5 features 5W of monocrystalline solar panel in a rugged enclosure with an easy-to-use kickstand and USB output. It connects to the Guide 12 to charge AA/AAA batteries from the sun, which can also used to power your phone, wearables, GPS, or quickly boost your tablet. Guide 12 features an increased battery size and USB-C input/USB-A output ports.

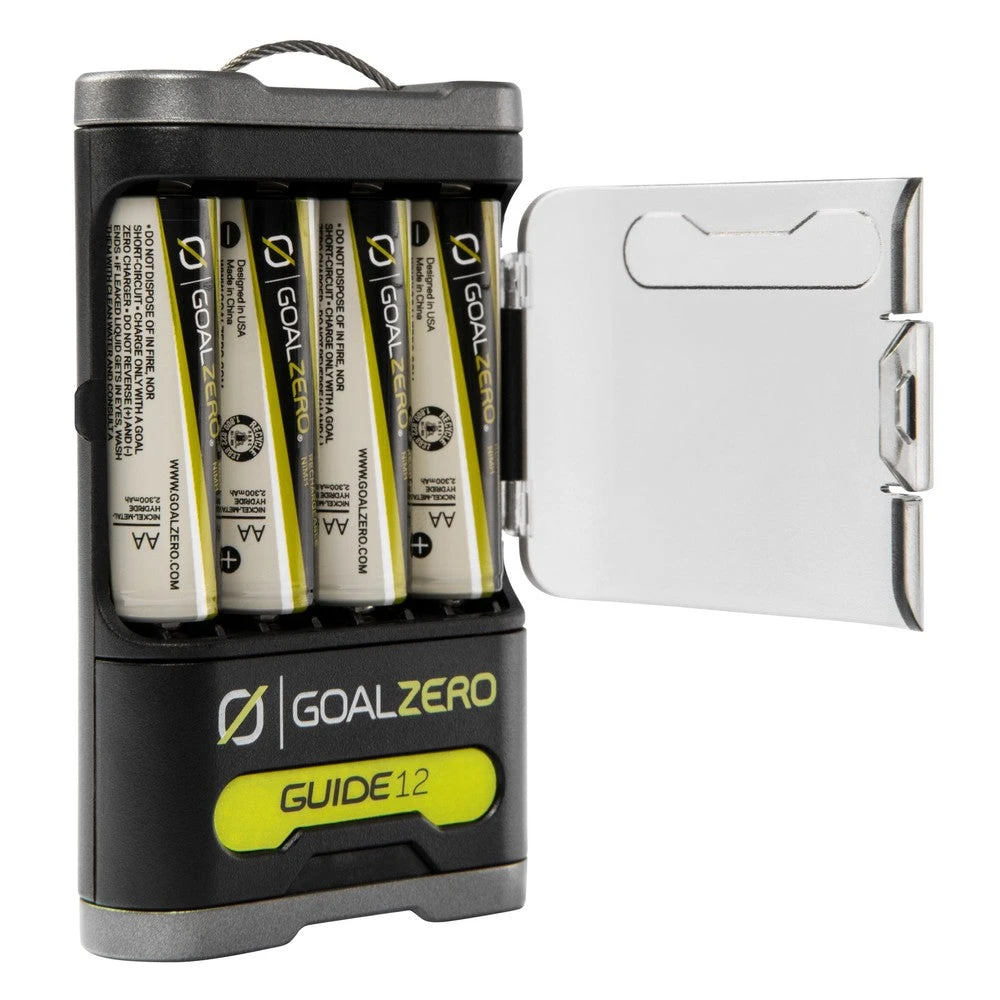

• 2,500mAh Battery Pack: Portable, rechargeable battery pack for power-hungry gear. Includes a USB output for charging phones and boosting tablets.
• Removable, Rechargeable Batteries: Use AAs for headlamps, flashlights, and remotes. Also works with other rechargeable NiMH batteries and includes AAA adapter.
• Light It Up: Includes a built-in flashlight, handy for digging in any purse or backpack, or lighting up a hallway in a pinch.

Features

Tech Specs

PORTS
Nomad 5 USB Port: 5V, up to 1A (5W max)
Guide 12 USB-A port (output): 5V, up to 2.0A (10W max), regulated
Guide 12 USB-C port (input): 5V, up to 1A (5W max)

BATTERY DETAILS
Cell Chemistry: NiMH
Battery Pack Capacity: 12.0Wh (4.8V, 2500mAh)
Single Cell Equivalent Capacity: 10,000mAh at 1.2V
Lifecycles: hundreds of cycles
Shelf-life: Keep plugged in, or charge every 3-6 months
Fuses: none
Management system: Charging and low-battery protection built-in

SOLAR
AC Adapter: 7 Hours
12V Car Adapter: 8 Hours
SolarSaga 100W Solar Panel: 8 Hours

LIGHT
LED (output): 100mW, white LED

More Info

CHARGE TIMES
GOAL ZERO Nomad 5: 4-8 hrs
GOAL ZERO Nomad 10: 4 hrs
USB source: 4 hrs

Nomad 5
Weight: 12.7 oz (360 g)
Dimensions: 9.5 x 7 x 1.1 in (24 x 17.8 x 2.8 cm)
Max Leg Angle: 180 degrees
Warranty: 12 months

Guide 12
Chainable: No
Weight (w/batteries): 6.4 oz (181 g)
Dimensions: 2.5 x 4 x 0.75 in (6.4 x 10.2 x 1.9 cm)
Operating Useage Temp: 32-104 F (0-40 C)
Certs: CE, FCC, ROHS

What’s Included

Guide 12
Nomad 5 Solar Panel
4x AA Batteries (NiMH Rechargeable)
USB-A To USB-C Charge Cable
AAA Tray Insert (AAA Batteries Sold Separately)
