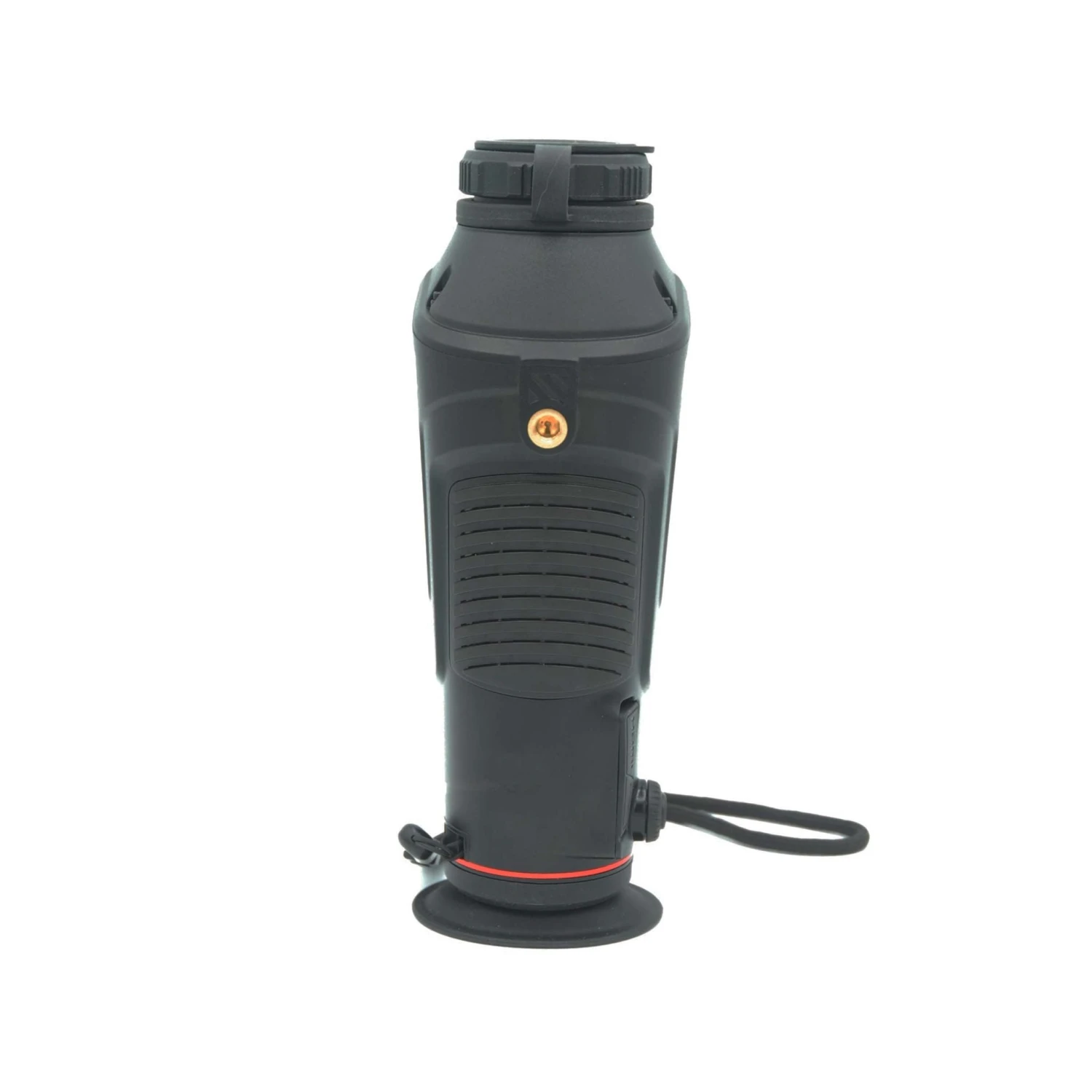

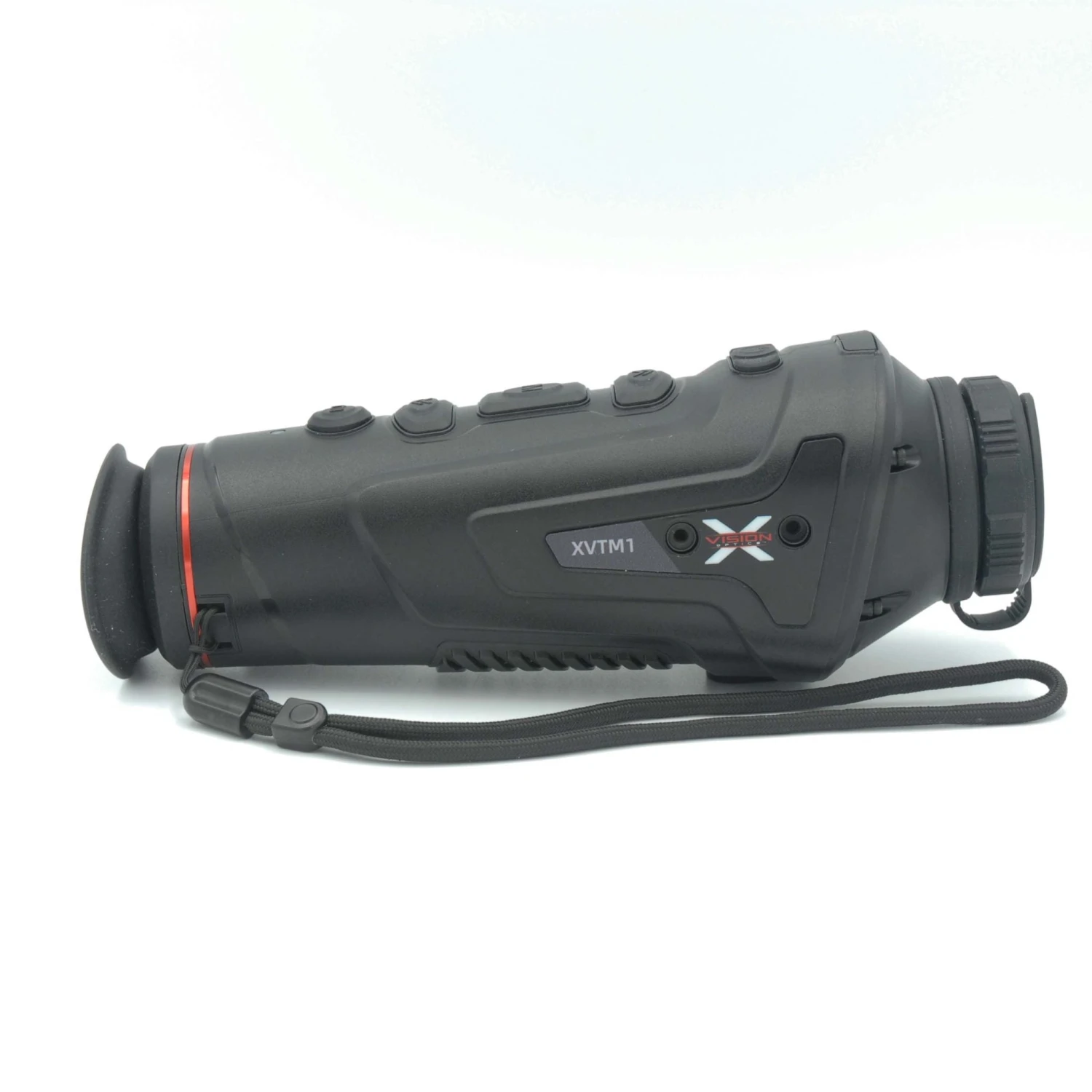

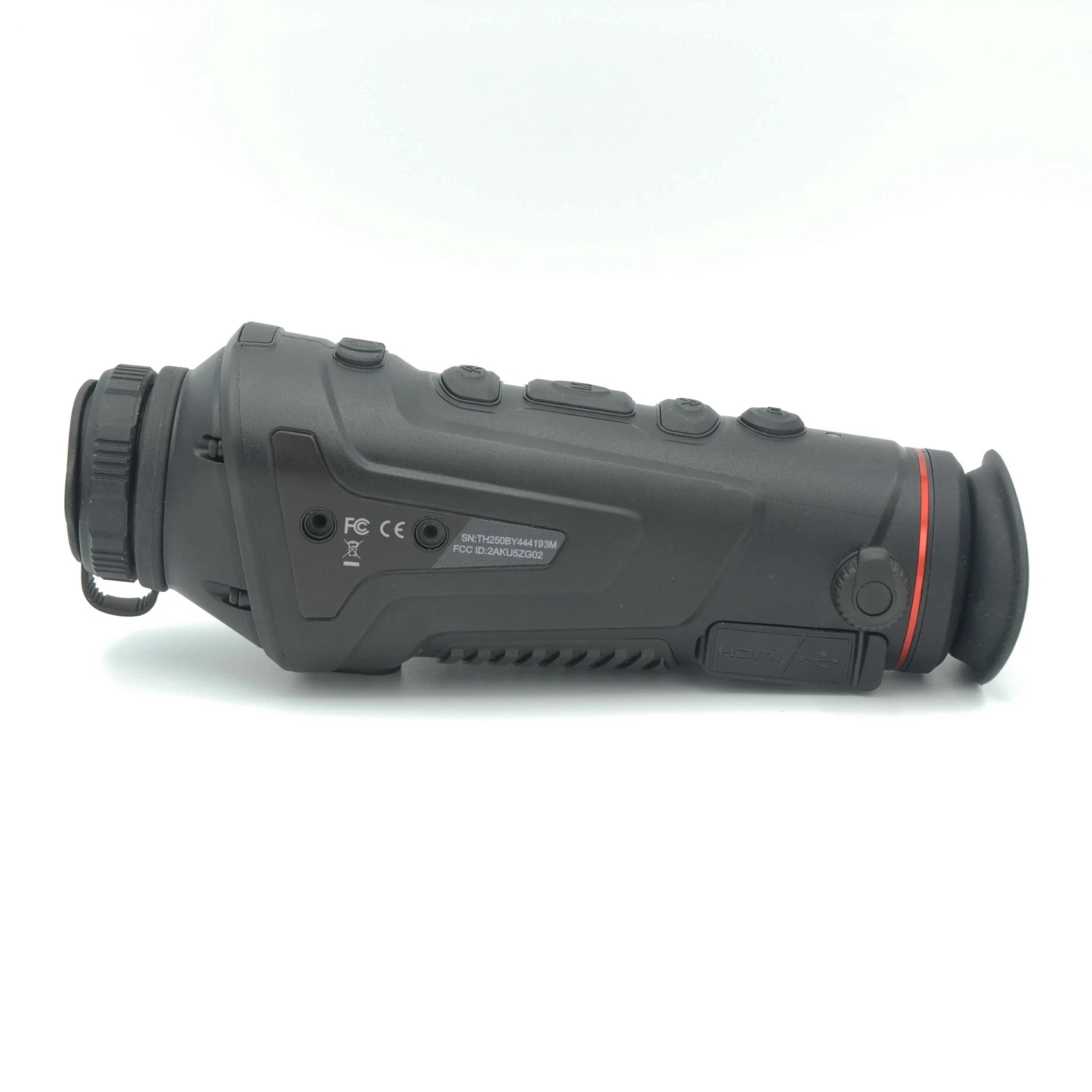

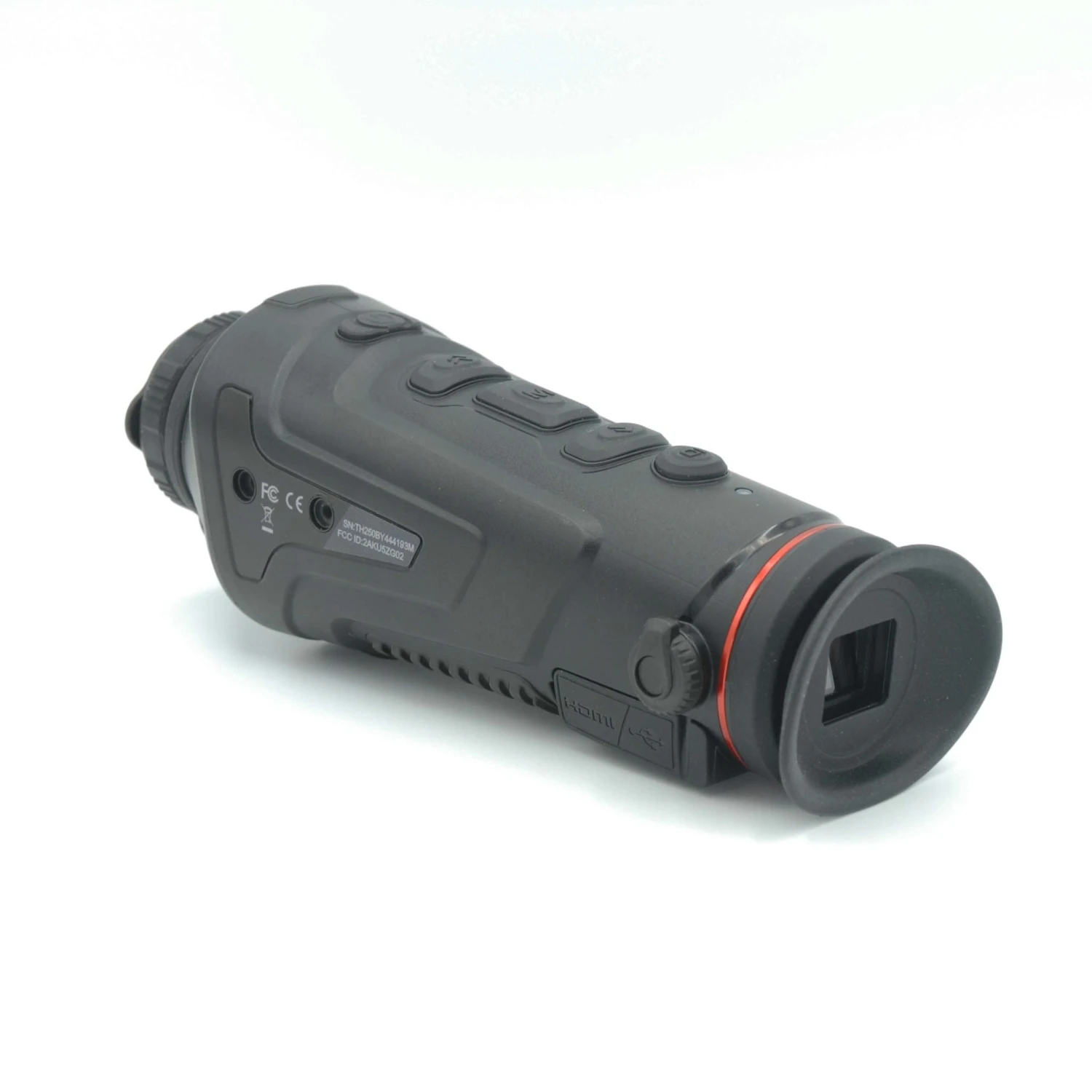

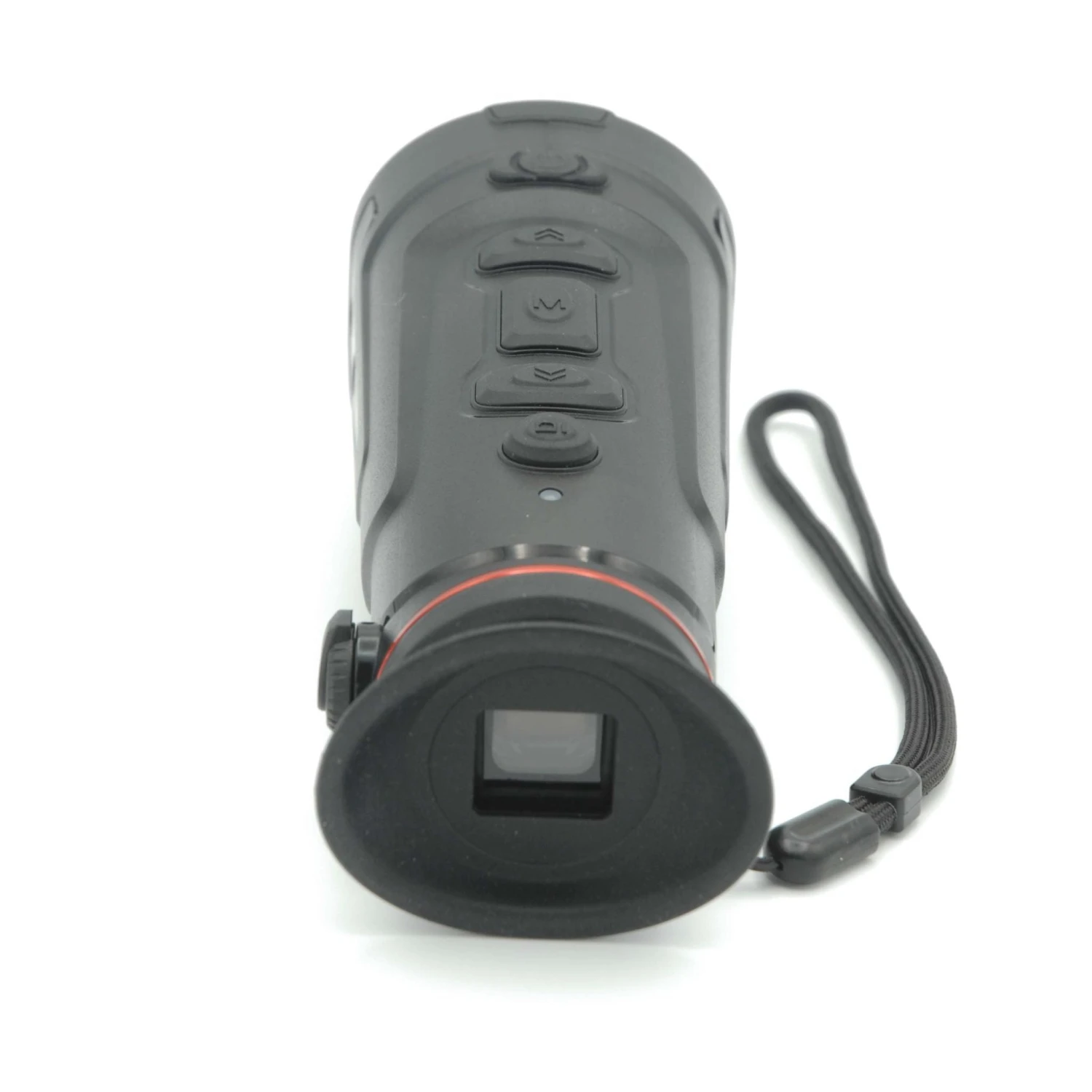

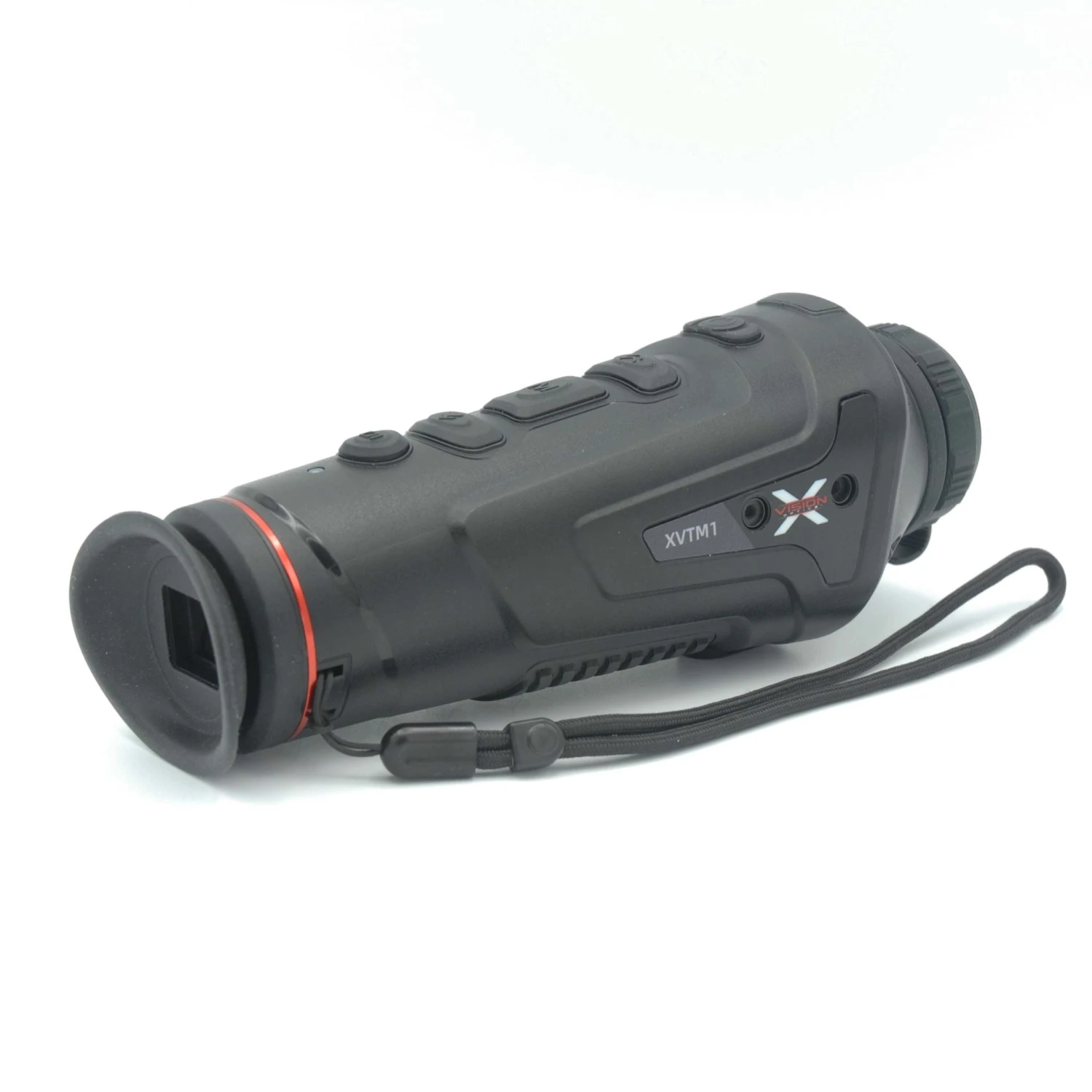

X-Vision XVT Thermal Monocular – TM1 Gear

X-Vision Optics’ all-new Thermal Monocular (TM1) has a 400 x 300 thermal detector and a 1.7 to 6.8x digital magnification. This allows it to detect big games almost 2000 yards away! Weighing in at 1lb with an overall length of 7.5,” the TM1 is compact and lightweight. The TM1 also has Wi-Fi capabilities, picture and record function, internal memory storage, hot spot tracking, and free phone app compatibility. This device is dust and water-resistant to an international protection rating of IP66. X-Vision Optics’ TM1 is the best all-around thermal monocular for hunting, scouting, and surveilling.

High-Performance Detection Range

The TM1 provides smooth zoom, built-in stadia-metric rangefinding, image quality adjustment, and picture-in-picture functions. At a high frame rate of 50 Hz, the device captures sharp thermal images and smoothly tracks rapid motion in the distance. The thermal monocular has a 1900-yard detection range and a 750-yard recognition range. The objective lens is 25 mm in diameter and has a field of view of 15.4^o x 11.6.^o The magnification for this thermal monocular is 1.7 to 6.8x.

Hot Spot Tracking

The Thermal Monocular is a multifunctional device that can be used for both day and night target observation and in any terrain. The unit has optional hotspot tracking which uses a small crosshair to pinpoint and follow the hottest object in its field of view making it easy to detect game at long ranges and in dense terrains.

High-Definition Display

With a 1280×960 HD display, this device provides adaptable and high-performance thermal imaging in any condition with five different colour palettes: White Hot, Black Hot, Red Hot, Iron Hot, and Blue Hot. Each palette option will detect heat and display in the selected colour option. With 10 different contrast settings, the device displays quality thermal images to better highlight targets in a variety of extreme conditions.

Video, Photo, and App Capabilities

This versatile unit features a wide range of applications. The TM1 has remote viewing capabilities via the free phone app. Using this feature, users can access real-time footage from separate locations. Users can also take photos and videos, and access and change settings from their mobile device through the free app. The device has an internal memory storage of 16 GB.

Specifications

• Magnification: 7-6.8X
• Detector: 400 x 300
• Pixel Size:17µm
• Focal Length: 25mm F1.2
• Frame Rate:50Hz
• Objective Lens:25mm
• Field of View:4^o x 11.6^o
• Detection Range: Person- 700m (750 yds) / Vehicle- 1700m (1900 yds)
• Recognition Range: Person- 350m (380 yds) / Vehicle- 700m (750 yds)
• NETD:≤50mk
• Display Screen: 1280 x 960 Color LCOS
• Display Palette: White hot, Black hot, Red Hot, Iron Hot, Blue Hot
• Power Supply: 5VDC Internal Battery
• Battery Life:  >5 hours (@77^o)
• Dimensions:75” x 2.5” x 7.5” in.
• IP Rating: IP66
• Ranging Capability: Stadia-metric Rangefinding
• Hot Track: Yes
• USB Capability: Type C, for charging/file transfer
• Video Interface: Micro HDMI
• Weight: 1 lb.
• Memory: 16 GB
• Picture and Video Capabilities: Yes
